Raised Bed Garden Ideas: 11 Smart Layouts for Real Yards

Most raised bed garden ideas start with a shape. The useful ones start with the path of the sun, the wheelbarrow, the hose, and your own reach. For a small yard, a plain rectangle placed well will usually outperform an elaborate U or keyhole bed that leaves you shuffling around cramped corners.

Use the 11 layouts below as working patterns, not prescriptions. The right choice depends on whether your limiting factor is sun, water, slope, access, soil volume, or the distance between the compost heap and the beds. Measure those constraints first, then choose the shape that removes the biggest nuisance.

Measure the yard before choosing a raised-bed shape

Start with a sketch rather than a timber order. Mark the sunny area at midmorning and again in late afternoon, the nearest tap, the route a loaded wheelbarrow must take, and any place where water sits after rain. A bed that looks beautifully aligned from the kitchen window can be a poor vegetable garden if the hose cannot reach it or a fence shades it during the hours when the crops need light.

Watch the site through one clear day if you can. Mark the shadow edge, but don’t treat it as fixed: a fence or hedge casts a longer shadow in spring and autumn than in midsummer. On sloping ground, identify the direction water travels before you decide where to put a box. A raised frame can hold soil in place, but a light timber surround is not automatically a retaining wall.

Here’s the short decision rule:

• Full sun and a simple open lawn: begin with one rectangle or two parallel beds.
• Partial shade: place leafy crops and herbs nearer the shade, while reserving the brightest strip for fruiting crops such as tomatoes and peppers.
• Narrow side yard: use a single strip with access from one side, or two shallow strips only if the central clearance remains genuinely usable.
• Slope: use beds running across the fall line only where the structure can resist soil and water pressure; otherwise terrace the ground properly or grow in-ground along the contour.

My bias is simple: design for the least convenient job you’ll do repeatedly. If compost delivery is awkward, keep beds close to the access route. If watering is the chore you avoid, group the beds around one irrigation manifold. A pretty layout that makes the essential job irritating will gradually become an abandoned layout.

Layouts 1–3: simple rectangles that make growing and expansion easy

1. The single freestanding rectangle

This is the sensible starting point for a small lawn: one bed with access on every side. Keep the growing width within your comfortable reach from both edges. The bed can hold salad crops, beans, carrots, onions, or a compact block of tomatoes without forcing you to step on the soil.

The advantage is not merely cheap construction. A freestanding rectangle gives you a clean test of the site. You’ll learn where puddles form, how quickly the soil settles, how long hand watering takes, and which side catches the strongest wind. Leave enough lawn or paving around it to turn a barrow without scraping the frame.

The tradeoff is exposed edge. More perimeter means more sides to water and more space occupied by paths relative to planting area. That is acceptable for a first unit because observation is more valuable than squeezing in a second crop before you understand the site.

2. Two parallel beds with a central path

Two matching rectangles make crop planning easier than one large box. Put a permanent path between them and assign each bed a broad crop group: fruiting crops in one, roots and leafy crops in the other, for example. In the following season, swap the groups rather than trying to remember where every individual plant stood.

Parallel beds suit drip lines or soaker hoses because each run can follow a straight bed. They also let you reach the middle from the outside and the central path. The cost is the path itself: you give up some footprint to gain access, rotation, and cleaner irrigation.

3. The modular grid

Build several identical rectangles with the same outside dimensions. Start with one or two, then add another unit beside them only after you know where the shade and traffic fall. Identical beds simplify covers, hoops, compost calculations, crop records, and replacement boards.

This is one of the strongest raised bed garden ideas for a growing household because expansion doesn’t require redesigning the whole garden. Keep a deliberate gap for a path or future bed rather than filling every spare corner. A modular grid becomes awkward when each new box is rotated to fit a leftover patch.

Layouts 4–6: use corners, curves, and central access without wasting soil

4. The L-shaped corner bed

An L works well where two boundaries meet and the inside corner would otherwise be dead space. It can wrap a patio, enclose a lawn corner, or keep crops near a kitchen door. Put taller crops on the side least likely to shade the shorter arm.

The inside corner is the catch. If both arms are deep, the diagonal pocket near the bend becomes difficult to reach without leaning across plants. Use the corner for herbs, flowers, or crops you harvest from the outside, not for a dense block of carrots that needs regular thinning.

5. The U-shaped kitchen garden

A U provides access from the central opening and the outside edges. It suits a contained kitchen garden where salad leaves, parsley, chives, and frequently picked crops need to be close at hand. The two side arms can carry irrigation runs, while the back section holds crops that stay in place for much of the season.

Don’t make the U deeper just because the outline looks efficient. You’re trading a little path space for a lot of inner-corner complexity. Keep the central opening wide enough for the tools you actually use, including a bucket or barrow if that route will carry compost.

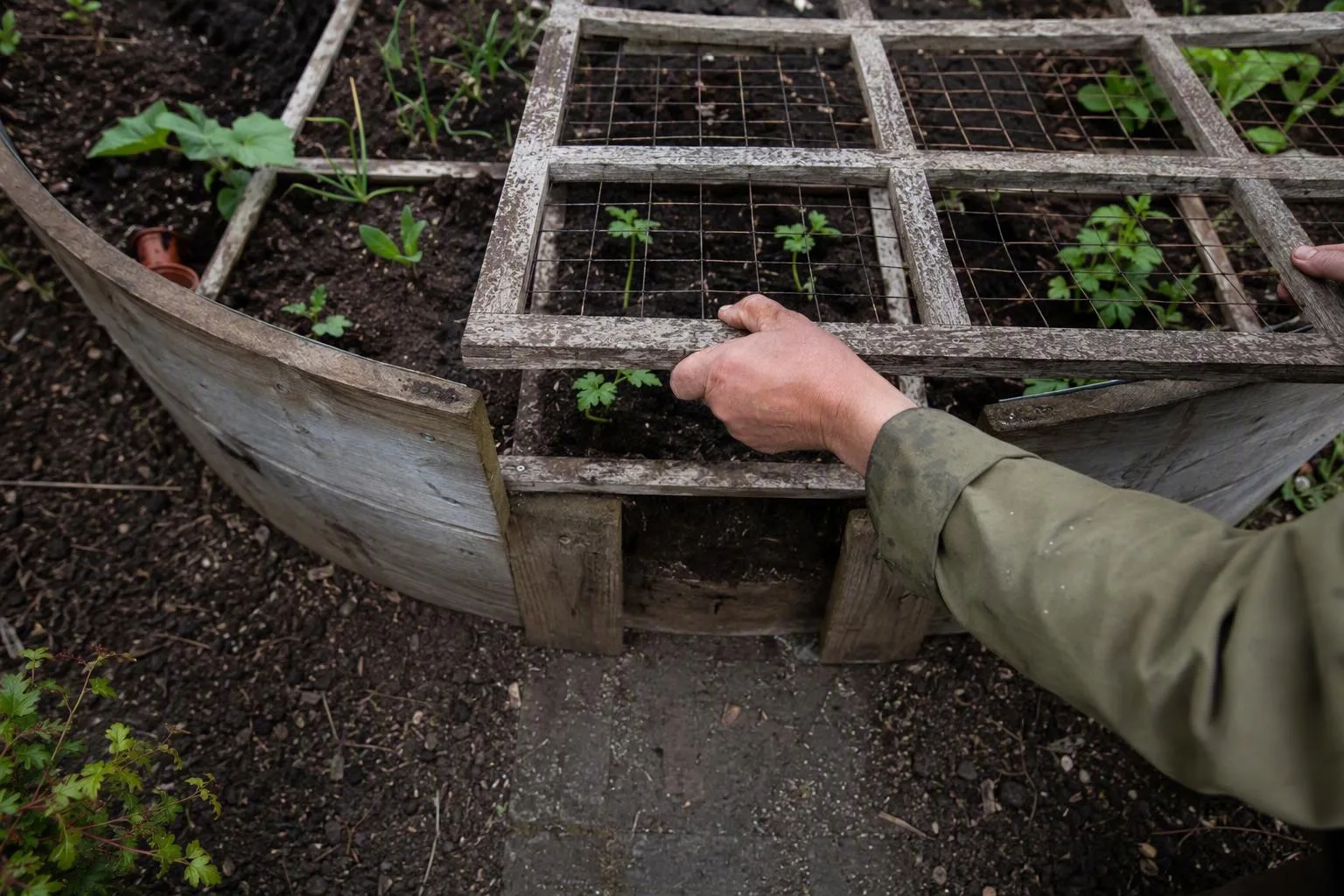

6. The keyhole-style bed

A keyhole bed places a narrow access path into a roughly circular or polygonal growing area. Its appeal is concentrated access: you can reach much of the planting from the outside and the notch. The format can be useful where you want one focal bed near a doorway.

It is less magical as a space-saving device than many sketches imply. The curved outside edge creates short planting rows, and the inner end of the notch can become a congested turning point. Use it for mixed crops that are harvested by hand rather than for long rows of roots or a large succession of peas.

For any of these three shapes, draw the bed outline on the ground with string before building. Put an empty crate in the path and walk around it. If you can’t comfortably reach the inside corner without bracing against the soil, change the outline now. Soil is cheaper to move before it arrives.

Layouts 7–9: make a narrow yard, fence line, or slope productive

7. The side-yard strip

A narrow strip can be productive if you accept that it is a one-sided bed. Place the bed so you can stand on the open side and reach the full planting width. Grow upright beans, herbs, salad leaves, onions, and compact roots; avoid sprawling squash unless you’re happy for the vines to occupy the path.

Keep the long axis aligned with the available light, not automatically with the property boundary. A strip beside a tall wall may receive only a short period of direct sun. In that case, reserve the brightest end for crops that need flowers and fruit, and use the dimmer end for leaves.

8. The fence-line bed

A fence-line bed is convenient for climbing crops, but the fence is both a support and a shade source. Put trellised peas or beans where the fence can carry the load, but check that the structure is strong enough and that you can harvest from the accessible side.

Leave clearance between the bed and the fence if you need to paint, repair, or retrieve fallen fruit. Roots from an established hedge or tree may enter the bed from below or sideways. A liner can slow that intrusion, but it won’t compensate for a dry, competitive root zone beside a mature tree.

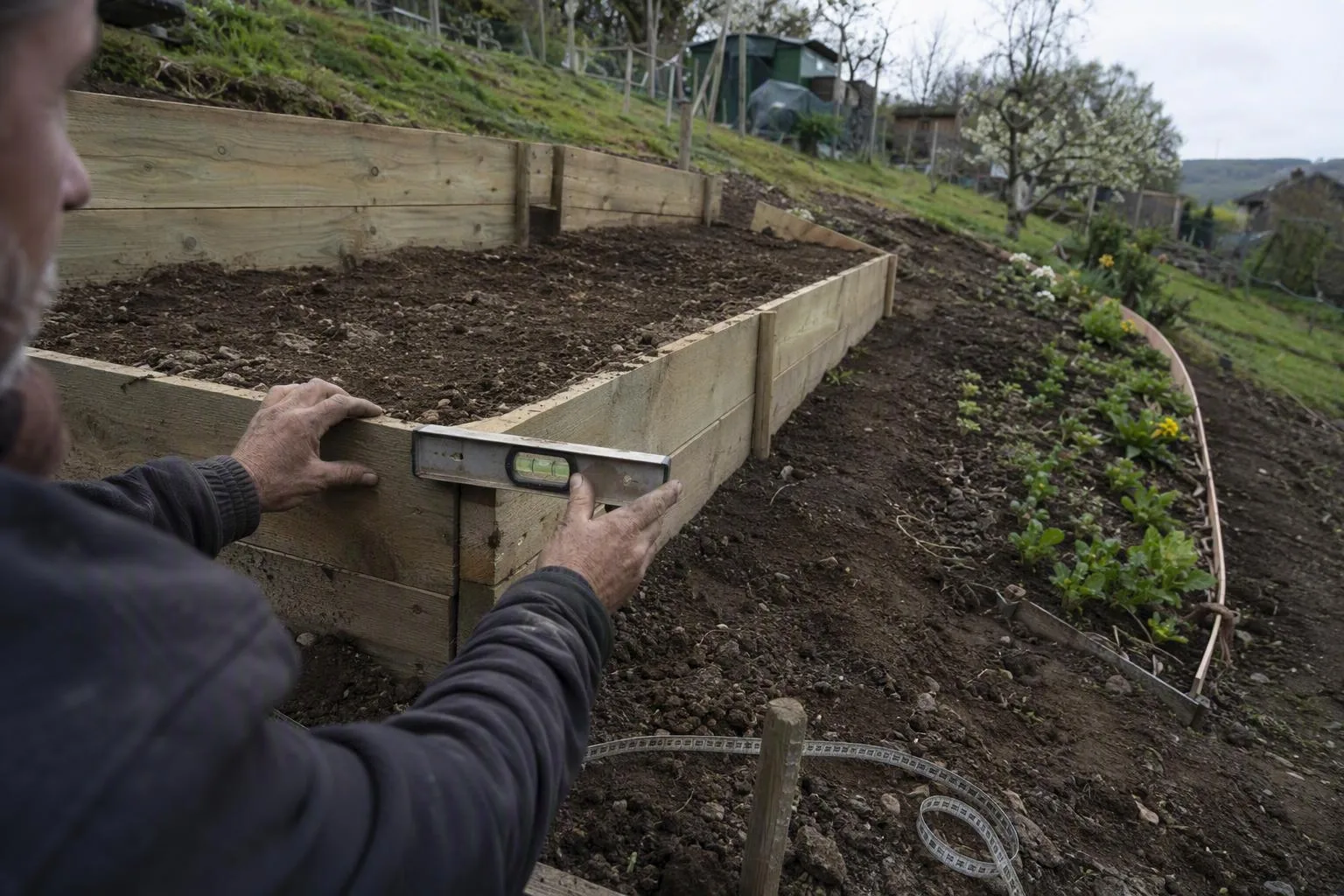

9. Terraced beds across a slope

On a gentle slope, a series of short terraces can reduce soil movement and make planting easier. Each terrace needs a stable face, a level growing surface, and a safe route for excess water. The lower terrace receives runoff and may stay wetter, so don’t assume every level will grow the same crops.

On a steep slope, pause before ordering boards. The downhill wall is retaining soil, not merely decorating a bed. A failure can send saturated soil and timber downhill. A qualified local builder or engineer may be needed for substantial retaining work, especially near buildings, boundaries, or public paths. Sometimes the best answer is contour planting, a properly engineered terrace, or no raised bed at all.

Layouts 10–11: design around people, not just plants

10. The mixed-height accessible layout

Use a combination of low beds, taller raised planters, and a clear central route rather than raising every bed to the same height. A higher planter can bring salad leaves and herbs closer to a seated gardener, while a lower bed may be better for crops that need trellising or frequent tying.

Include a place to sit or kneel. Access isn’t solved by bed height if the gardener still has nowhere stable to position their body. Keep frequently harvested crops in the easiest zone and put slower crops farther away.

Height adds construction, soil, and watering complexity. Taller containers dry from their sides and may need more frequent checking, particularly in warm, windy weather. Build one elevated unit before committing the entire garden to that system.

11. The family or homestead layout

Separate the garden by use rather than putting every crop in a mixed patch. One zone can hold intensive vegetables, another perennial herbs, another cut flowers, and another a compost or tool route. This keeps children and pets away from delicate seedlings and gives a wheelbarrow a predictable path.

Put robust, forgiving crops near the traffic route and fragile crops deeper inside. Leave a turning area where a barrow or garden cart changes direction. The extra open space may look wasteful in a plan, but it prevents feet, wheels, and hoses from cutting through the beds later.

The dimensions that decide whether a clever layout stays usable

There is no single correct bed width because reach, bed height, and whether you can access one or both sides all change the answer. As a practical starting point, a bed reached from both long sides should be no wider than the distance you can reach comfortably without leaning on the soil. A one-sided bed should be shallower. Test this with a tape measure and your actual stance, not an idealised arm span.

Paths need to fit the job. A narrow footpath may be fine between two beds that are hand-watered. A main route carrying compost needs more clearance, and a wheelbarrow needs room to turn rather than merely pass straight through. Mark the route with flour or string and walk it while carrying the bucket you use most.

Bed height changes the system. A shallow frame adds less filled soil and may warm quickly, but it does little to solve poor subsoil. A tall bed improves access for some gardeners, yet contains more purchased or prepared soil and exposes more side area to drying. Before filling, read the companion guide to raised bed soil mixes: what to add and what settles after a season; settling can leave a tall frame with a surprisingly low planting level.

Here’s a worked footprint example. Suppose the usable sunny patch is roughly 4 metres by 5 metres. Two long beds with a central path and a perimeter route may provide less raw soil area than one broad rectangle, but they create two planting zones, a reliable access route, and a place to move a hose without crossing crops. A three-bed grid can add growing area, but only if the remaining paths still allow you to carry compost and turn safely. Count the whole footprint, not just the dark rectangles on the sketch.

Match the layout to irrigation, soil, and the crops you actually grow

Hand watering works for one compact bed and becomes a daily inspection tour as the garden expands. That inspection can be valuable, but it is easy to wet the surface while leaving the root zone uneven. Straight beds make it simpler to run drip lines or soaker hoses in parallel, secure them at the beginning of the season, and check for blocked or displaced sections.

Use the irrigation method that matches the crop spacing. Closely spaced salad rows can share a line; widely spaced tomatoes may need emitters placed near individual root zones. Squash and pumpkins often make a raised bed look generous on paper and crowded in July. Give them an edge to spill over, or grow them elsewhere.

Root crops need enough depth and a stone-free growing zone. Perennial herbs need a place where you won’t dig them up during crop rotation. Thirsty crops should be near the easiest water route. These are layout decisions, not afterthoughts.

For edible crops, use clean, known soil and compost sources. Avoid material of uncertain origin, particularly where it may contain persistent herbicide residues, construction debris, or contaminants. If manure or compost is used, follow the supplier’s handling guidance and wash harvested produce before eating it.

If irrigation is the limiting factor, compare the options in drip irrigation for raised beds: layout, spacing, and troubleshooting before you build a maze of disconnected boxes.

A four-year crop sequence for a two-bed and four-bed version

Crop rotation is easier when the physical layout gives each crop group somewhere to go. The useful unit is usually the crop family, not the individual plant. Moving a tomato from one end of the same box to the other does little if the same soil remains in use; moving fruiting crops to a different bed gives you a more meaningful break.

Two-bed version

Divide the garden into Bed A and Bed B. In year one, put fruiting crops such as tomatoes, peppers, and aubergines in A; put roots and leafy crops in B. In year two, move the fruiting group to B and use A for roots and leaves. Add legumes where space allows, but don’t pretend two beds create a perfect rotation for every disease. Some pathogens move with soil, tools, volunteers, or wind and may not be stopped by a short move.

After a heavily harvested crop, a cover crop or overwintering green manure can protect bare soil, provided you choose one suited to your climate and terminate it before it competes with the next planting. Keep perennial herbs outside the rotating vegetable beds.

Four-bed version

Use four named beds and move the groups one position each year:

1. Year one: legumes in Bed 1, leafy crops in Bed 2, fruiting crops in Bed 3, roots in Bed 4.
2. Year two: move each group to the next bed, with the root group following the fruiting group if that suits your soil preparation.
3. Year three: continue the sequence, adding a cover crop to any bed that would otherwise remain bare over winter.
4. Year four: complete the circuit, then review pest and disease observations before repeating it.

The exact order matters less than keeping related crops together and recording what occupied each bed. Brassicas, for example, are easier to rotate as one group than as scattered plants hidden among unrelated crops. A full worked plan is laid out in A four-year crop rotation for small vegetable gardens.

My judgement call: rotation is most useful as a record-keeping and disease-risk tool, not as a ritual that excuses poor sanitation. Remove diseased foliage, clear crop residues where appropriate, control volunteer plants, and avoid moving contaminated soil between beds. Rotation buys time; it doesn’t make a garden biologically sealed.

Build the smallest version first, then leave a deliberate expansion bay

Choose the smallest layout that solves your current access and water problem. Build one repeatable unit, leave an expansion bay beside it, and observe a full growing season before filling that bay. Measure how long watering takes, where paths clog with leaves or tools, which bed receives late shade, how much compost settles, and whether your harvest justifies the extra maintenance.

If the first bed is awkward, a second identical bed will multiply the awkwardness. If the first bed works, expansion is straightforward. That is why the best raised bed design is rarely the most decorative one: it is the one that gives you useful evidence before you spend more money, soil, and weekends.

Sketch the garden again at the end of the season. The next bed should answer a measured problem, such as too little salad space, a hose route across the path, or a crop that needs a better trellis. Leave the unused bay empty until you know which problem you’re solving.
