Raised Garden Bed DIY: Build One That Won’t Dry Out

A raised garden bed DIY project that stays damp is not built by adding a taller frame alone. Build an open-bottom bed 12–18 inches deep where the site allows it, keep the growing width to 4 feet or less, fill it with mineral soil and mature compost, cover the surface with 2–3 inches of loose mulch, and install irrigation before planting. The reason is simple but easy to miss: a raised bed loses water from its top and from its exposed sidewalls, so construction reduces some problems while creating another route for evaporation.

The aim is not a maintenance-free box. It is a root zone that changes slowly enough for you to water thoroughly, check it, and adjust before cucumbers wilt or lettuce turns bitter.

Start with the water problem: a shallow bed dries out faster

A 6-inch frame gives you a tidy edge and a little extra depth, but it contains a small root-zone reservoir. In a sunny, windy position, that shallow volume can move from adequately moist to dry before the plant has extended roots below it. A 12–18-inch bed gives roots more soil to explore and gives you more time between a deep watering and the next moisture check. It does not cancel out drought, wind, a thirsty crop, or a leaky irrigation layout.

The stronger starting point is a well-structured 12-inch bed, with height added selectively. Go toward 18 inches where the existing ground is compacted, contaminated, paved, or difficult to cultivate. If the bed sits on good soil, adding height mainly to avoid bending can spend extra money and increase sidewall exposure without improving every crop.

Build the water system as four linked decisions:

• an open bottom so surplus water can leave and roots can continue downward;
• a stable fill containing mineral soil rather than only light organic material;
• a loose surface mulch that slows evaporation;
• irrigation that wets several inches down, not just the top crust.

That combination is more reliable than a sealed box filled with a fluffy mix. Search guidance from university extension services on raised-bed soil mixes, depth, and drainage is worth checking against your local soil and rainfall, because the correct design for a wet clay site is not the correct design for a dry, sandy allotment.

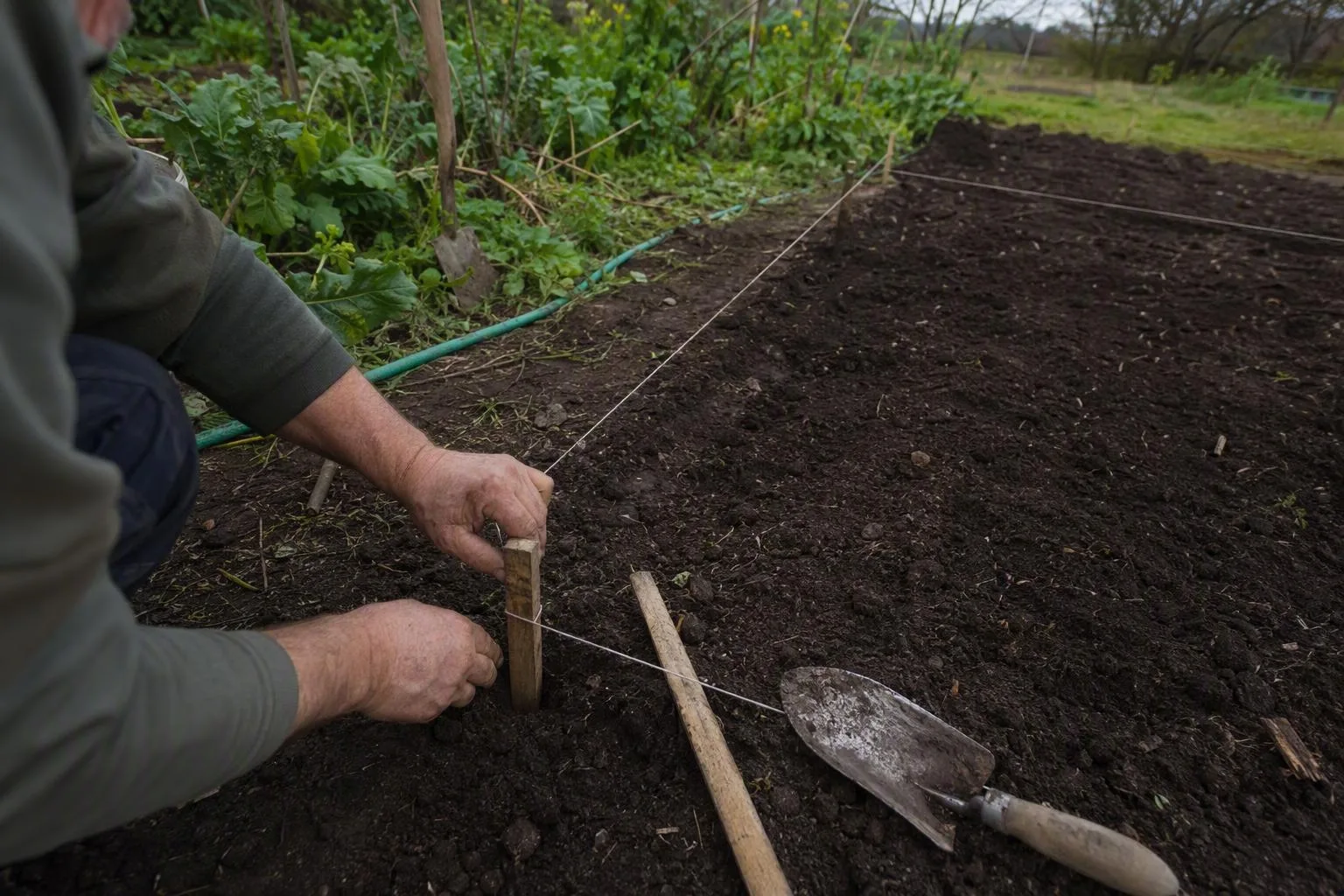

Choose the site by measuring afternoon exposure and existing drainage

Most fruiting vegetables need a bright position for a useful crop, but “full sun” is not the only site test. A bed beside a pale wall may receive strong reflected heat. One under a mature tree may look sunny in spring and become root-competitive by midsummer. A windy corner can dry leaves and soil faster than a sheltered bed with the same number of sun hours.

Before buying timber, run this sequence:

1. Mark the proposed rectangle with string.
2. Watch it through the afternoon, particularly between midday and late afternoon, when heat and evaporation accumulate.
3. After rain, or after soaking the surrounding ground with a hose, check whether water leaves the area or sits against the proposed bed.
4. Trace the route from the nearest tap. If a hose must cross a path or be dragged around a shed, watering will become irregular.
5. Push a spade or hand fork into several points. Dense tree roots, rubble, and a hard pan are different problems from slow surface drainage.
6. Stand where you will work and note the prevailing wind and the side from which you will approach the bed.

Drainage and drying are not opposites. A site can drain adequately and still lose water quickly because its soil is exposed to wind and sun. Conversely, a bed over compacted ground can remain wet at the base while its upper layer looks dry. Put the bed near water, but not in a natural hollow unless you have a reason to manage that excess water.

The 4-foot width is a reach limit, not a rule about plant spacing

Width controls whether you can maintain the middle without stepping into the growing soil. A 3-foot bed is comfortable from either side and suits a narrow path or wall. A 4-foot bed uses space efficiently while keeping the centre within reach for many gardeners. A 5-foot bed creates planting area that looks productive on paper but often turns the middle into a neglected strip, especially once foliage hides the soil and mulch.

The better long-term choice is a raised working surface wide enough to reach without stepping into it, rather than a deep container built solely to avoid bending. If a 4-foot width forces you to stretch, choose 3 feet. If the bed is against a wall, limit the width to the distance you can reach from the open side; a two-sided 4-foot design becomes a one-sided maintenance problem when pushed against masonry.

Length is mostly a matter of access and materials. Long beds work well when paths cross them or when you can reach every point from the sides. Break an unusually long run into sections if irrigation zones, crop rotation, or wheelbarrow access would otherwise become awkward. Leave enough path width to turn with a watering can and to kneel without crushing the neighbouring bed.

Bed width	Useful fit	Main compromise
3 feet	One-sided access, narrow plots, wall edges	Less planting area per length
4 feet	Two-sided access and dense vegetable planting	Reach becomes difficult for shorter gardeners
5 feet	Large open plots with generous access on all sides	Centre soil is tempting to step on and harder to water evenly

Build the frame from materials that survive wet soil without adding avoidable risks

Untreated cedar and other naturally durable timbers are straightforward choices where they are affordable and locally available. Ordinary untreated softwood costs less, but its service life depends heavily on constant wetting, soil contact, and the local climate. Recycled plastic boards do not rot, although they can flex when thin and may become hot in exposed positions. Masonry lasts and stores heat, but it requires a firmer base and is less forgiving to alter later. Metal is quick to assemble, yet dark panels can heat the root zone and sharp edges need finishing.

There is no universally best material. The sensible choice balances budget, expected lifespan, local availability, heat exposure, and whether you need to dismantle the bed. For most small vegetable beds, a thick untreated board with proper corner support is a better compromise than a flimsy board doubled in height.

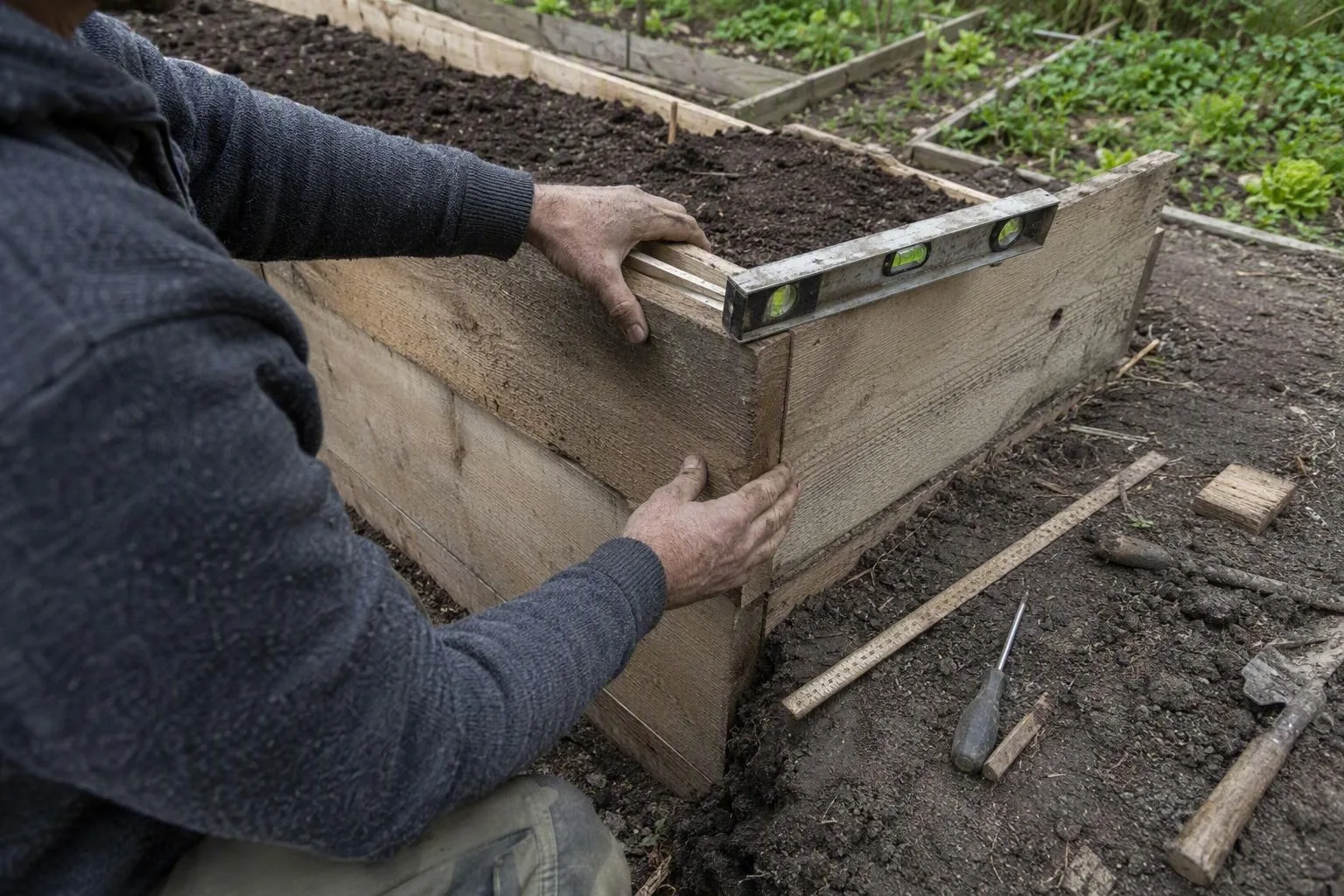

Use a level as you build, not after the soil is inside. Join corners with exterior-rated screws, add a brace to long sides, and support tall walls so wet soil cannot push them outward. A 12-inch wall made from one substantial board behaves differently from two narrow boards joined without a vertical connection. If you add a second course, stagger the joints and connect the courses at the corners and along long runs.

Do not assume reclaimed timber is suitable for edible crops because it looks old. Identify whether it was painted, industrially treated, contaminated by an unknown use, or exposed to spills. Older treated lumber is a food-safety question, not a cosmetic one. If the treatment cannot be identified, use another material or reserve the timber for a non-edible border. Check current USDA or equivalent local guidance on treated wood before using reclaimed boards around food crops.

A bottom is usually the wrong fix for a bed that dries out

Three jobs get confused here: drainage, weed suppression, and root exclusion. An open-bottom bed placed directly on soil handles drainage and allows roots to continue below the frame. Flatten grass, remove perennial weeds, and use a temporary layer of plain cardboard or newspaper where turf suppression is needed. That layer belongs against the ground, not halfway through the finished soil profile.

Hardware cloth is justified where voles, moles, or similar burrowing pests are a demonstrated problem. Fix it beneath the frame so the mesh cannot lift at the edges. It solves a pest route, not a moisture problem.

Plastic sheeting or an impermeable base changes the bed into a container. Water then depends on drainage holes, the surrounding slope, and your irrigation timing. On a wet site, the plastic can trap water at the root zone; on a dry site, it stops deep roots from finding lower moisture. A liner also makes the bed more dependent on you. Use a targeted barrier for a specific contamination or pest concern, and accept the trade-off rather than treating lining as standard construction.

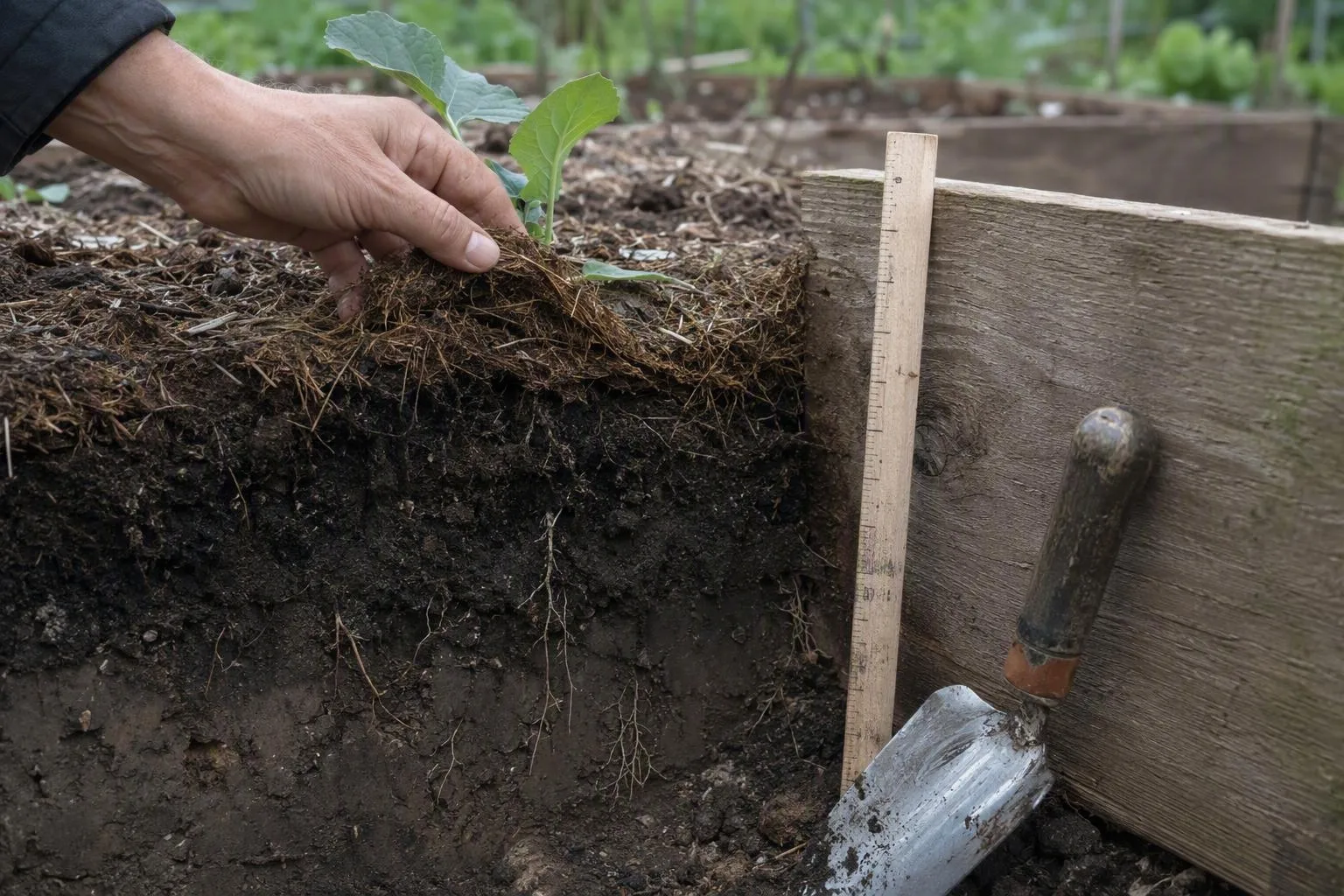

Fill it as a soil system: mineral soil, compost, and structure in the right proportions

Think of the fill as a working soil, not a bagged substrate. Mineral soil contributes weight, fine particles, and a longer-lasting framework. Mature compost contributes organic matter and nutrients, but it continues to change as organisms process it. Coarse organic matter can open structure in some heavy materials, yet it is not a substitute for a stable mineral component.

For a bed intended to last several seasons, the stronger mix is one that feels crumbly when moist, holds together lightly when squeezed, and breaks apart when nudged. A mix that feels almost weightless may drain quickly and shrink sharply as its organic ingredients decompose. A mix that smears into a dense ribbon stays wet in the wrong places and resists root penetration.

Planning values for crop depth are not promises: the usable depth depends on compaction, soil texture, the crop’s root shape, and whether roots can continue into the ground below.

Crop group	Practical planning range
Leafy greens and many herbs	About 6–12 inches as a planning range, with more depth useful in dry or compacted sites
Onions, radishes, and beetroot	About 6–12 inches as a planning range; widen the margin where compaction limits root expansion
Carrots and parsnips	Plan for the mature root length plus loose soil below; deeper provision matters especially for long-rooted types
Tomatoes, cucumbers, and squash	About 12 inches or more gives a larger root-zone volume, with trellising and crop load affecting water demand

Mix ingredients on a tarp or hardstanding before filling. Turn the pile with a fork, wetting dusty material lightly so it does not separate by particle size. Fill slightly above the final level because the soil will settle. Do not pack it down by walking on it. Water in stages, allow it to drain, and top up low areas rather than adding a thick layer of fresh compost over the surface.

Fresh or immature compost is a poor shortcut. Its decomposition can compete for available nitrogen near young roots, and a very large proportion of compost can produce a saltier, less stable growing environment. Compost quality varies; if it smells sour, heats again after wetting, or contains recognisable undecomposed bedding, give it more time before using it as a major part of a vegetable-bed fill.

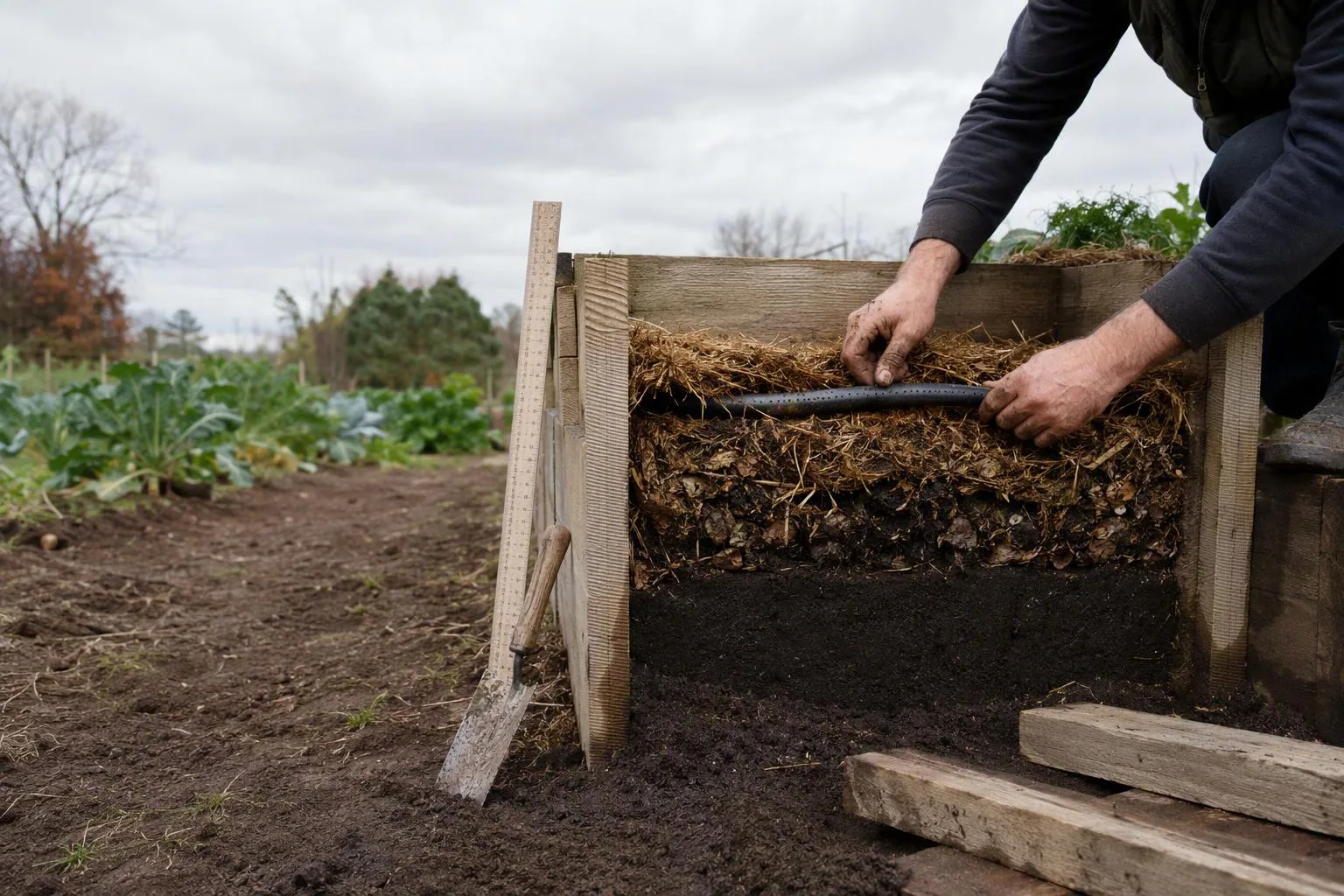

Mulch is the cheapest moisture-control layer—but only if it stays loose

Once the soil has warmed and seedlings are established, apply roughly 2–3 inches of loose, weed-free organic mulch. The layer interrupts the direct path from moist soil to moving air, buffers surface temperature, and reduces the splash that carries soil onto leaves. It works best when it remains open enough for irrigation water to pass through.

Straw is useful around many vegetables when it is clean and not packed into a felted mat. Shredded leaves suit beds where a thinner, quicker-decomposing cover is acceptable. Finished compost works as a fine surface amendment, but it is not as effective an evaporation barrier when spread thinly. Wood chips suit paths and perennial plantings better than newly seeded vegetable rows, where they can obstruct sowing and make the surface awkward to cultivate.

Keep mulch a small distance from stems. Touching mulch holds moisture against the crown and creates a protected route for some pests. Grass clippings are particularly prone to forming a wet, airless layer if applied thickly; use thin successive applications instead. Very dry, compacted mulch can shed water at first, so wet it or roughen the surface when you install it.

Mulch is not a substitute for correcting a poor fill. It slows loss from the top; it cannot stop a root zone from draining through a coarse, shrunken mix or a sidewall from drying in strong wind. The related guide on how thick should mulch be around vegetable plants? is useful when crop stems and mulch depth need to be balanced.

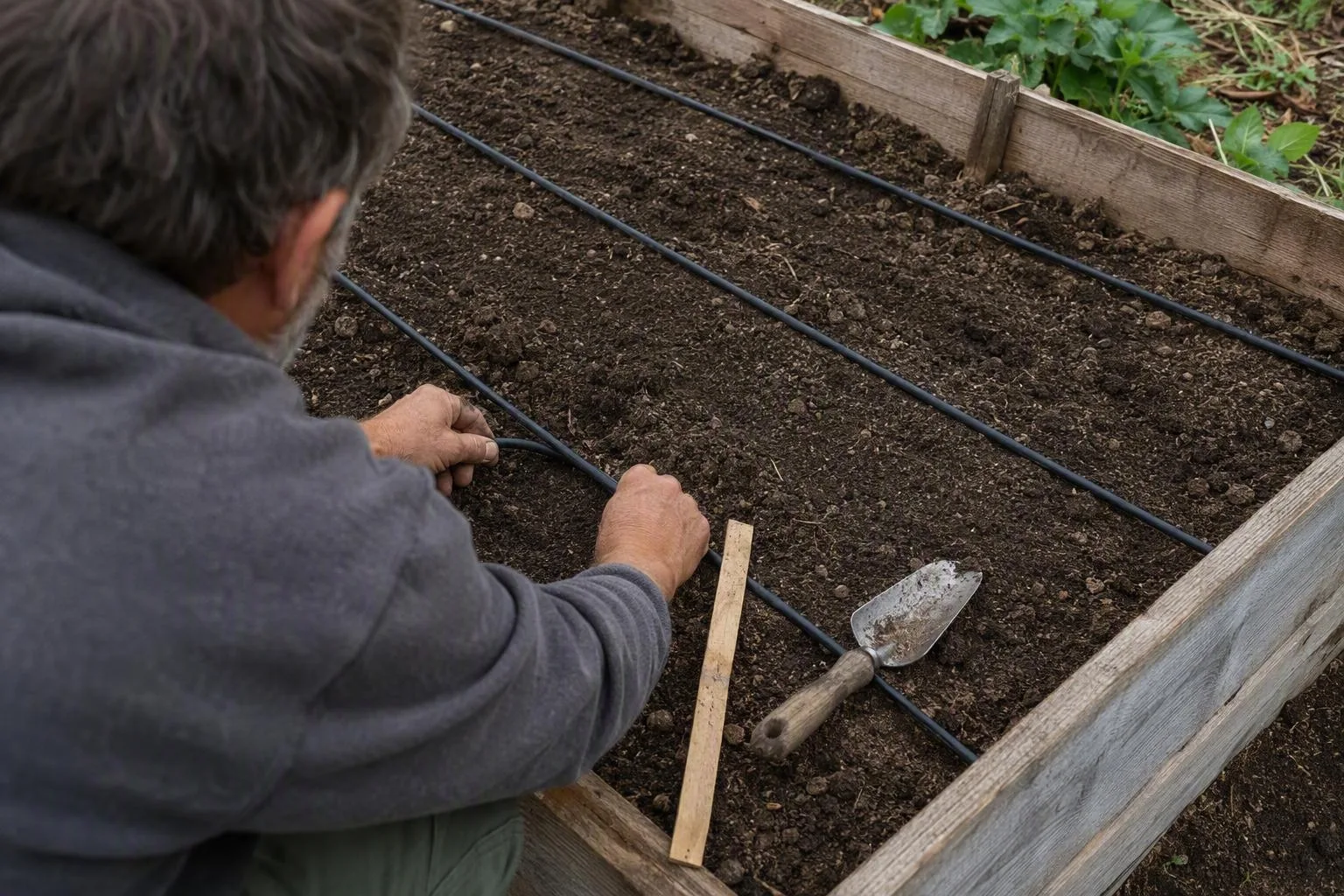

Install watering before the plants turn the bed into an obstacle course

Hand watering is precise for a few containers or a newly seeded patch, but it becomes inconsistent once foliage covers the soil. A soaker hose is simple to deploy. Dripline places water more deliberately along a row and works well under mulch when the layout matches the planting. Olla-style reservoirs can serve small areas, but they need refilling and do not suit every spacing or root pattern.

Lay the hose or dripline on the soil surface, test it, then cover it with mulch. Avoid burying it deeply until you know the pattern is even. Run the system long enough to wet the root zone, then dig a small inspection hole several inches from a plant. Surface darkness is not proof that the deeper soil is replenished.

For a 4-foot bed, arrange lines so the wetting patterns overlap without leaving a dry central strip. The exact spacing depends on emitter output, soil texture, and the crop row. The internal guide titled Drip irrigation layout for a 4-foot vegetable bed can sit beside this construction sequence because irrigation geometry is a design decision, not an afterthought.

A timer improves consistency but does not know whether yesterday’s rain reached the roots. Check below the surface before extending a schedule. If the upper inch is dry but the soil several inches down is cool and cohesive, watering immediately may add little. If the top looks damp but the lower root zone is dusty, shorten the interval between thorough irrigations or improve the distribution.

Plant for the bed’s water budget, not just its square footage

Planting density changes the water demand of the whole rectangle. Cucumbers and leafy greens make a large, relatively thirsty canopy. Rosemary, thyme, sage, and other Mediterranean herbs prefer a sharper-draining regime once established. Group crops with similar watering needs instead of placing one thirsty cucumber beside herbs that resent constant moisture.

Edge plants face the additional drying effect of the frame’s sidewalls. Put crops that tolerate a little more exposure near the edge, or use the edge for plants you can inspect easily. A trellised cucumber or tomato also changes the water budget: its roots occupy the bed, while its elevated foliage increases transpiration and may shade the surface. Dense canopy reduces evaporation later, but seedlings do not provide that protection in the first weeks.

For the first season, water new transplants to settle the soil around their roots, inspect moisture below the surface, and adjust as roots expand. Seedlings need shallow, regular attention until they establish; mature plants need less frequent but more thorough replenishment. Succession sowing should be treated as a new commissioning event because each fresh row has a small root system even when the older crop is shading the bed.

The first month is a commissioning test, not a verdict on the design

Use the first four weeks to find the weak link. Check the bed after watering, after a hot or windy spell, and after heavy rain. Look at the soil several inches below the mulch, inspect the exposed sidewalls for rapid drying, and watch for water running away from the frame instead of entering it.

If the bed dries too quickly, check in this order:

1. Confirm that irrigation reaches the centre and the full length.
2. Check whether the mulch is thin, matted, or shedding water.
3. Inspect the fill for excessive shrinkage or a very light, organic-only texture.
4. Look for wind exposure and intense reflected heat from walls or paving.
5. Only then consider increasing irrigation frequency or adding a second line.

If the bed stays wet, first check whether the site drains slowly, whether the fill has collapsed into a fine layer, or whether irrigation overlaps too heavily. If plants wilt while the soil is damp, inspect the roots and the crown rather than simply adding water. Root damage, poor aeration, transplant shock, and disease can all produce wilt that irrigation cannot repair.

Settling is normal enough to plan for, but a deep hollow beside the frame deserves investigation. Top up with a compatible soil mix, not a thick blanket of uncomposted material. Keep notes on where the bed dried and where it stayed wet. That map tells you whether the next purchase should be irrigation hardware, better mulch, a revised soil mix, or a change in exposure.

Three quick answers before you build

How deep should a raised garden bed be to hold moisture?

For many vegetables, 12–18 inches is a more forgiving planning depth than a shallow 6-inch frame. Depth still works alongside mulch, suitable soil structure, and irrigation; it cannot compensate for an exposed site or a crop with high water demand.

Should I line my raised garden bed with plastic?

Usually not when the bed is open to healthy ground. Impermeable plastic can restrict deep rooting and complicate drainage. Use a targeted, breathable, or pest-specific barrier when the actual problem calls for one, and identify the trade-off before installing it.

What is the best soil mix for a raised bed that dries out?

Choose a stable blend with substantial mineral soil and mature compost rather than an extremely light, organic-only mix. Judge the finished material by texture, settling, and how moisture behaves several inches below the surface. If the compost is immature, let it finish before making it a major part of the fill.

The next decision is not whether to make the frame taller. It is which constraint is controlling your bed: sidewall exposure, poor soil structure, uneven irrigation, or the site itself. Fix that constraint first, then let the frame do the smaller job it is good at.
